Score
rate product
Electrical data |
|
| Construction wattage [PICOS] | 8.00 W |
| Nominal wattage | 8.00 W |
| Rated lamp efficacy (HF data 25 °C) | Under clarification by authority and standardization body |
| Rated wattage | 6.00 W |
Photometrical data |
|
| Light color as per EN 12464-1 | Cold White |
| Light color | 640 |
| Luminous flux at 25 °C | 385 lm |

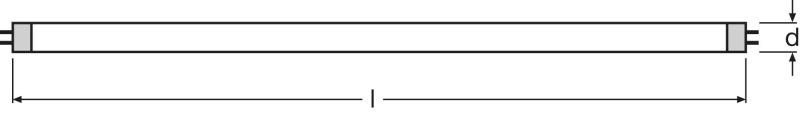

Dimensions & weight |
|
| Diameter | 16.0 mm |
| Length | 288.0 mm |
| Tube diameter | 16 mm |
| Length with base excl. base pins/connection | 288.00 mm |
Lifespan |
|
| Nominal lamp life time | 5000 h |
| Rated lamp life time | 5000 h |
| Lifespan | 8000 h |
| Service life | 4500 h |
Additional product data |
|

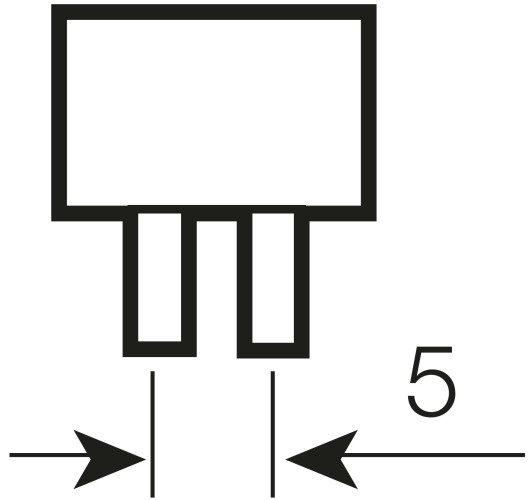

| Base (standard designation) | G5 |
| Appropriate disposal acc. to WEEE | Yes |
| Lamp mercury content | 2.5 mg |
Certificates & standards |
|
| Energy efficiency class | A |
| Energy consumption | 9 kWh/1000h |
Product benefits
Areas of application
Product features
Safety advice
In case of lamp breakage: www.osram.com/brokenlamp
System guarantee
OSRAM System+ Guarantee in combination with OSRAM ECGs
Osram https://www.electrico24.eu/uploads/producer_logos/d83bdb510944b8ad8743f3d191f9d801.png

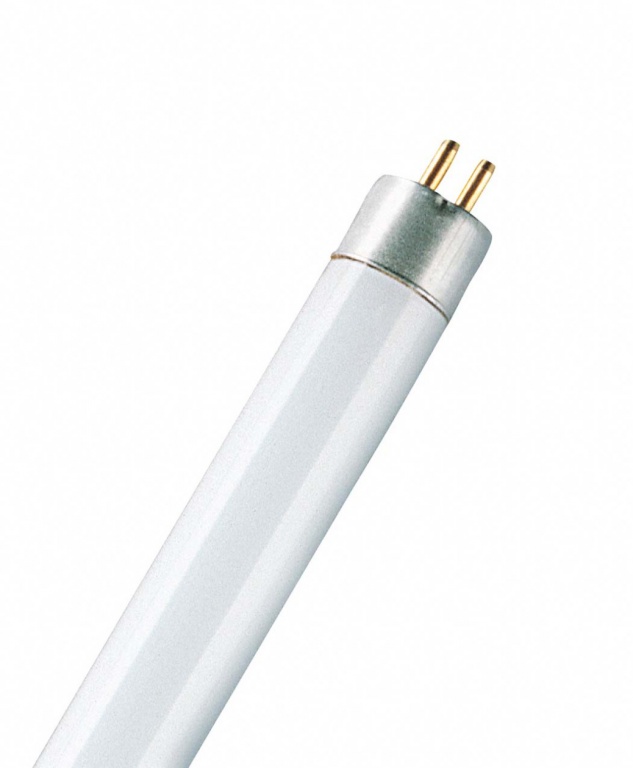

Fluorescent Lamp Basic T5 Short EL
Wondering how to select a light source for luminaire? Below is a list of popular light sources of Osram and Philips with base information and the light source indication. Fluorescent Linear and Circular Base Power (W) Luminous flux (lm) OSRAM PHILIPS Fluorescent Linear T5 (T16) G5 8 400 Basic T5Short L 8W TL MiniStandard TL Mini 8W 14 200... read more »
