Wall Luminaire ZEW EL Wall Luminaires

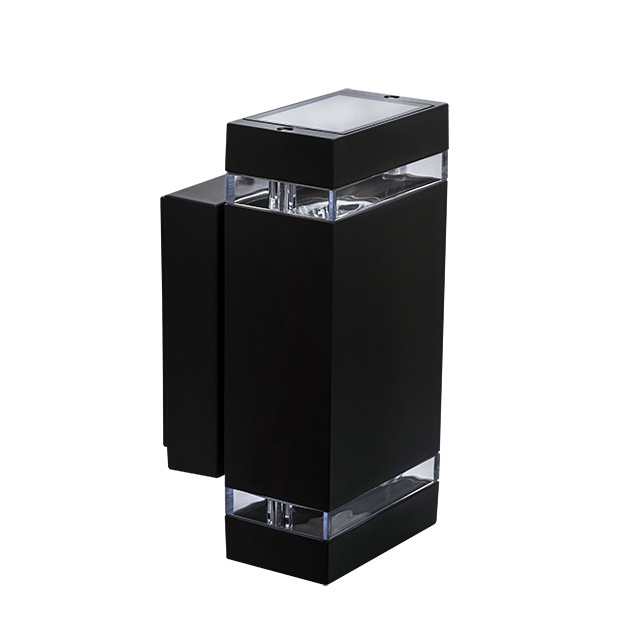

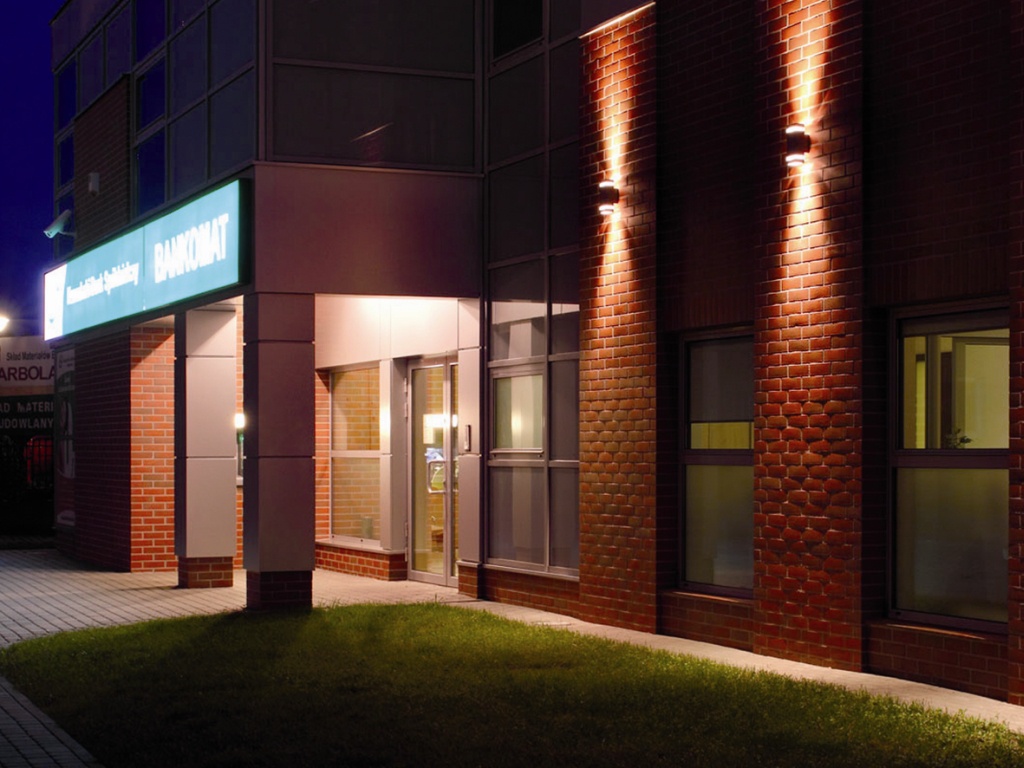

Wall Luminaire Kanlux ZEW EL-235J-B - arrangement

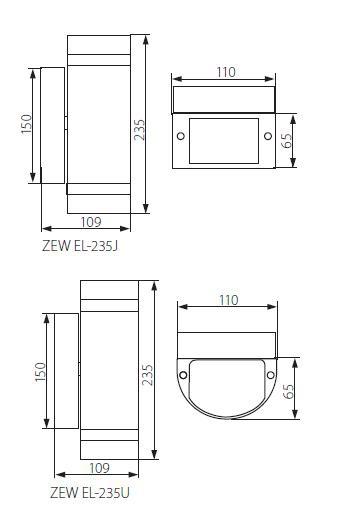

Wall Luminaire Kanlux ZEW EL-235J-B - technical drawing

From € 21,64 incl. VAT
From € 21,64 ex. VAT

See variants (4)

220-240V supply
Rated frequency 50/60Hz
minimal distance from illuminated object 0.5m
protection against solid objects over 1mm and water drops
conformity with European standards
immovable fixture
applicable outdoors and indoors
I protection class
connector: terminal block
for mounting on vertical surface
12 pcs per inner box
GU10 base
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Manual Catalogue page

Score

rate product

Select your product from the 4

Wall Luminaire ZEW EL-235U-B

Karta produktu PDF

Product code: 61685 Availability 1000 Fullfillment time 1-2 dni Dostępność: w magazynie Color: Black Weight: 0,89

€ 21,64 € 21,64 ex. VAT

Wall Luminaire ZEW EL-235U-GR

Karta produktu PDF

Product code: 61687 Availability 1000 Fullfillment time 1-2 dni Dostępność: w magazynie Color: Grey Weight: 0,89

€ 21,64 € 21,64 ex. VAT

Wall Luminaire ZEW EL-235J-B

Karta produktu PDF

Product code: 61684 Availability 1000 Fullfillment time 1-2 dni Dostępność: w magazynie Power: Black Weight: 0,89

€ 22,90 € 22,90 ex. VAT

Wall Luminaire ZEW EL-235J-GR

Karta produktu PDF

Product code: 61686 Availability 1000 Fullfillment time 1-2 dni Dostępność: w magazynie Color: Grey Weight: 0,98

€ 22,90 € 22,90 ex. VAT

Description / FAQ Warranty

Kanlux Parameters
	220-240V supply
	Rated frequency 50/60Hz
	minimal distance from illuminated object 0.5m
	protection against solid objects over 1mm and water drops
	conformity with European standards
	immovable fixture
	applicable outdoors and indoors
	I protection class
	connector: terminal block
	for mounting on vertical surface
	12 pcs per inner box
	GU10 base
	permissible surrounding temperature from -20 to max 35 C degrees
	light source: JDR halogen bulb
	wattage 2 x 35W

base: aluminum alloy / pane: hardened glass

Wall Luminaire ZEW EL
