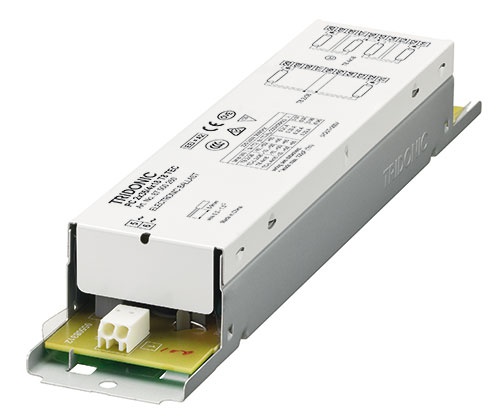

PC 4x18 T8 TEC Fluorescent Electronic Gear

Electrico24 code: 72387 | Tridonic code: 87500257

NOTE: are photographs image for the entire group of products.

Unavailable

Weight per pc. 0.178 kg
tc point max. 70 °C

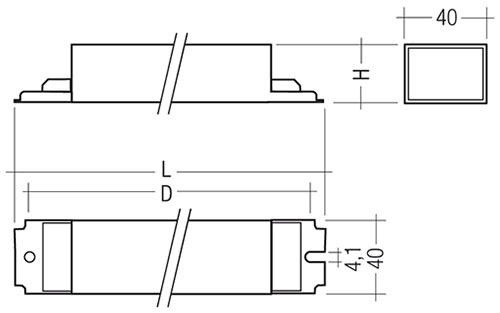

Hole spacing D 198 mm
Packaging, carton 60 pc(s).
DimensionsL x W x H 210 x 40 x 30 mm
Packaging, low volume 840 pc(s).
Lamp type TC-L
Lamp wattage 4 x 18 W
Circuit power 65.5 W
EEI A2
Lamp power 59.5 W
Current at 50 Hz 0.29 A
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Data sheet

Score

rate product

Description / FAQ Warranty

Weight per pc.	0.178 kg
tc point max.	70 °C
Hole spacing D	198 mm
Packaging, carton	60 pc(s).
DimensionsL x W x H	210 x 40 x 30 mm
Packaging, low volume	840 pc(s).
Lamp type	TC-L
Lamp wattage	4 x 18 W
Circuit power	65.5 W
EEI	A2
Lamp power	59.5 W
Current at 50 Hz	0.29 A
λ at 50 Hz	0.96
Ambient temperature ta	-10 ... +50 °C
Packaging, high volume	2,520 pc(s).
Tridonic - parametry
	ÖVE
	CCC
	CE
	EAC
	RCM
	RoHs
AC voltage range	198 – 264 V
Mains frequency	50 / 60 Hz
Overvoltage protection	320 V AC, 1 h (280 V AC, 48 h for 2x58 W applications)
Time to light	≤ 2 s
Type of protection	IP20
Mains voltage range	220 – 240 V
Operating frequency	> 40 kHz

CELMA Energy Efficiency Index A2
Nominal life-time up to 30,000 h (at ta 50 °C with a failure rate ≤ 0.3 % per 1,000 h)
Large temperature range (for values see table)
Lamp preheating for min. 30,000 starts without replacement of lamps
Automatic start after replacement of defective lamps
Push terminal for rapid automatic or manual wiring
Temperature protection as per EN 61347-2-3 C5e
