| Light source power | 4x18W |
| Louver/shutter | SLA |
| Weight | 4.76 kg |
| CNBOP | Yes |
| Light source | T8 |
| Lamp holder | G13 |
PXF - Mechanical data |
|
| Type of installation | For 600x600 ceiling |
| Housing material | Steel sheet |
PXF - Electrical data |
|
| Type of equipment | EVG |
| Voltage rating | 230 V |
PXF - Infromations |
|
| Color | White |
PXF - Light data |
|
| Light distribution | DI |
PXF - Certificates |
|
| Degree of protection (IP) | IP20 |
| Class of protection | I |
| Energy class | A |
| CE | Yes |

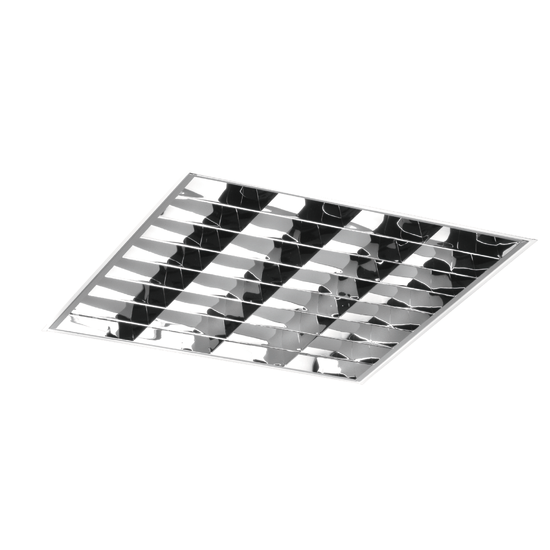

A solid and popular luminaire for mounting into 600x600 modular ceiling with a visible supported structure. Available with 4 different louvers and 2 diffusers.
Materials: powder painted housing made of steel sheets (standard color: white), parabolic louvre made of high quality polished PAR and matt PAR-S anodized aluminum, straight louvres of polished SLA or white SLB aluminum, opal or prismatic diffuser made of PMMA
Installation: for 600x600 ceiling
Power: 230 V
| L | W | H | |
|---|---|---|---|
| PX1146129 2x18W | 595 | 290 | 90 |
| PX1146136 2x36W | 1195 | 290 | 90 |
| PX1146143 3x18W | 595 | 595 | 90 |
| PX1146150 4x18W | 595 | 595 | 90 |
| PX1146529 2x18W | 595 | 290 | 90 |
| PX1146536 2x36W | 1195 | 290 | 90 |
| PX1146543 3x18W | 595 | 595 | 90 |
| PX1146550 4x18W | 595 | 595 | 90 |
| PX1119143 2x18W | 595 | 290 | 90 |
| PX1119150 2x36W | 1195 | 290 | 90 |
| PX1119157 3x18W | 595 | 595 | 90 |
| PX1119164 4x18W | 595 | 595 | 90 |
| PX1119171 4x36W | 1195 | 595 | 90 |
| PX1127136 2x18W | 595 | 290 | 90 |
| PX1127143 2x36W | 1195 | 290 | 90 |
| PX1127150 3x18W | 595 | 595 | 90 |
| PX1127157 4x18W | 595 | 595 | 90 |
| PX1127164 4x36W | 1195 | 595 | 90 |
| PX1131136 2x18W | 595 | 290 | 90 |
| PX1131143 2x36W | 1195 | 290 | 90 |
| PX1131150 3x18W | 595 | 595 | 90 |
| PX1131157 4x18W | 595 | 595 | 90 |
| PX1131164 4x36W | 1195 | 595 | 90 |
| PX1131145 2x55W | 595 | 290 | 90 |
| PX1135136 2x18W | 595 | 290 | 90 |
| PX1135143 2x36W | 1195 | 290 | 90 |
| PX1135150 3x18W | 595 | 595 | 90 |
| PX1135157 4x18W | 595 | 595 | 90 |
| PX1135164 4x36W | 1195 | 595 | 90 |
| PX1139136 2x18W | 290 | 290 | 90 |
| PX1139143 2x36W | 1195 | 290 | 90 |
| PX1139150 3x18W | 595 | 595 | 90 |
| PX1139157 4x18W | 595 | 595 | 90 |
| PX1139164 4x36W | 1195 | 595 | 90 |
| PX1143129 2x18W | 290 | 290 | 90 |
| PX1143136 2x36W | 1195 | 290 | 90 |
| PX1143143 3x18W | 595 | 595 | 90 |
| PX1143150 4x18W | 595 | 595 | 90 |

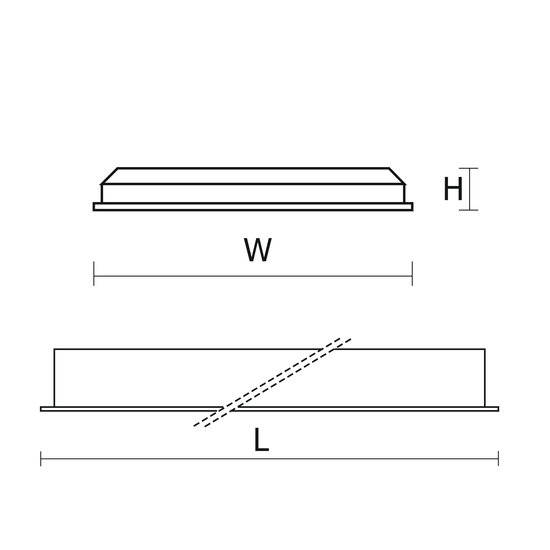

L - Length
W - Width
H - Height / Depth
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
PXF Plexiform https://www.electrico24.eu/uploads/producer_logos/2855e4bbbfab7c351abefdfa4e5ea3b0.jpg
Roma 4x18W T8 SLA 63916 63916 63916
Wondering how to select a light source for luminaire? Below is a list of popular light sources of Osram and Philips with base information and the light source indication. Fluorescent Linear and Circular Base Power (W) Luminous flux (lm) OSRAM PHILIPS Fluorescent Linear T5 (T16) G5 8 400 Basic T5Short L 8W TL MiniStandard TL Mini 8W 14 200... read more »
