| Full product code | 910402601918 |
| Full product name | TCW215 2xTL-D18W HFS PI |
| Order code | 910402601918 |
| Order product name | TCW215 2xTL-D18W HFS PI |
| Pieces per pack | 0 |
| Bar code on outerbox - EAN3 | 8711559291727 |
| Packs per outerbox | 1 |
| Logistic code(s) - 12NC | 910402601918 |
| Net weight per piece | 1.473 kg |
| Product family code | TCW215 [TCW215] |
| Number of light sources | 2 [2 pcs] |
| Kombipack | No |
| Lamp family code | TL-D [MASTER TL-D] |
| Lamp power | 18 W [18 W] |
| Compensation circuit | No |
| Gear | HFP [HF Performer] |
| Cable | No |
| Feed-through wiring | No |
| Ingress protection code | IP66 [Dust penetration-protected, jet-proof] |
| Input voltage | 220-240 V [220 to 240 V] |
| Protection class IEC | CLI [Safety class I] |
| Mech. impact protection code | IK02 [0.2 J standard] |
| CE mark | CE [CE mark] |
| ENEC mark | ENEC [ENEC mark] |
| Flammability mark | F [For mounting on normally flammable surfaces] |
| Glow-wire test | 650/5 [Temperature 650 °C, duration 5 s] |
| Connection | PI [Push-in connector 3-pole] |
| Housing material | PES [Polyester] |
| Optical cover/lens material | PMMA [Polymethyl methacrylate] |
| Ready-to-install | No |
| Country version | No |
| Mechanical accessories | No |

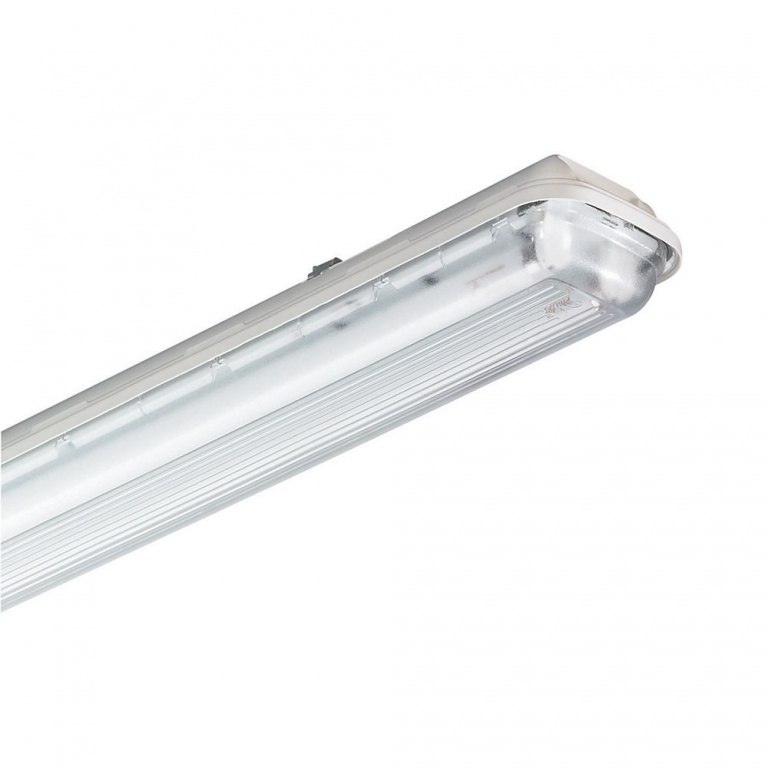

Pacific TCW215 is a functional dust- and jetproof luminaire for TL-D fluorescent lamps. The cover is fixed to the housing by means of an innovative concept using integrated fixing points to avoid external lockers. There is a choice of different standard versions available. The luminaire can be mounted individually or in-line, with easy 'click' installation. Flexibility is ensured with a choice of fixing points and different cable entries. The TCW215 can also be suspended from Philips TTX410 light-line systems.
Features
| Dust-, jet- and shock-proof |
| TL-D fluorescent lamps |
| Mounting individually or in lines |
| Also available in versions for high temperatures (+50 °C) and cold stores (-30 °C) |
Applications
| Industry |
| Indoor workplaces |
