| Cap-Base | 2GX13 |
| Bulb | C-T5 [C-T 16 mm] |
| Color Code | 830 [CCT of 3000K] |
| Color Designation (text) | Warm White |
| Color Temperature | 3000 K |
| Dimmable | Yes |
| Energy Efficiency Label (EEL) | A |
| Energy consumption kWh/1000h | 44 kWh |

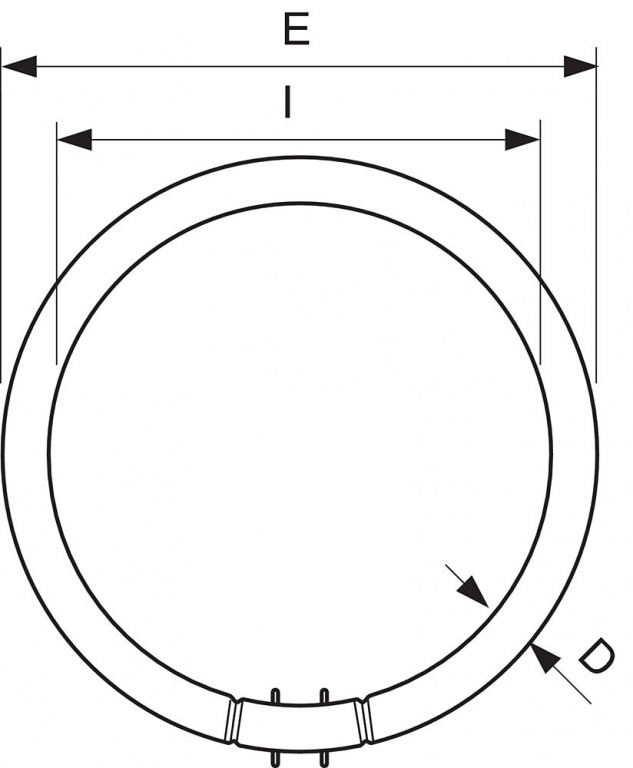

| Diameter D | 14 (min), 18 (max) mm |
| Full product code | 927965583013 |
| Full product name | MASTER TL5 Circular 40W/830 1CT |
| Order code | 927965583013 |
| Order product name | MASTER TL5 Circular 40W/830 1CT/10 |
| Packing configuration | 10 |
| Pieces per pack | 1 |
| Bar code on outerbox - EAN3 | 8711500640987 |
| Bar code on pack - EAN1 | 8711500640970 |
| Packs per outerbox | 10 |
| Logistic code(s) - 12NC | 927965583013 |
| Net weight per piece | 75.000 gr |
| Lamp Wattage | 40 W |
| Overall Width E | 293 (min), 305 (max) mm |
| Color Rendering Index | 80 (min), 85 (nom), 85 (max) Ra8 |
| ILCOS code | FSCH-40/30/1B-L/P-2GX13-16 |
| Mercury (Hg) Content | 2.5 mg |
| Chromaticity Coordinate X | 440 - |
| Chromaticity Coordinate Y | 403 - |
| Design Temperature | 35 C |

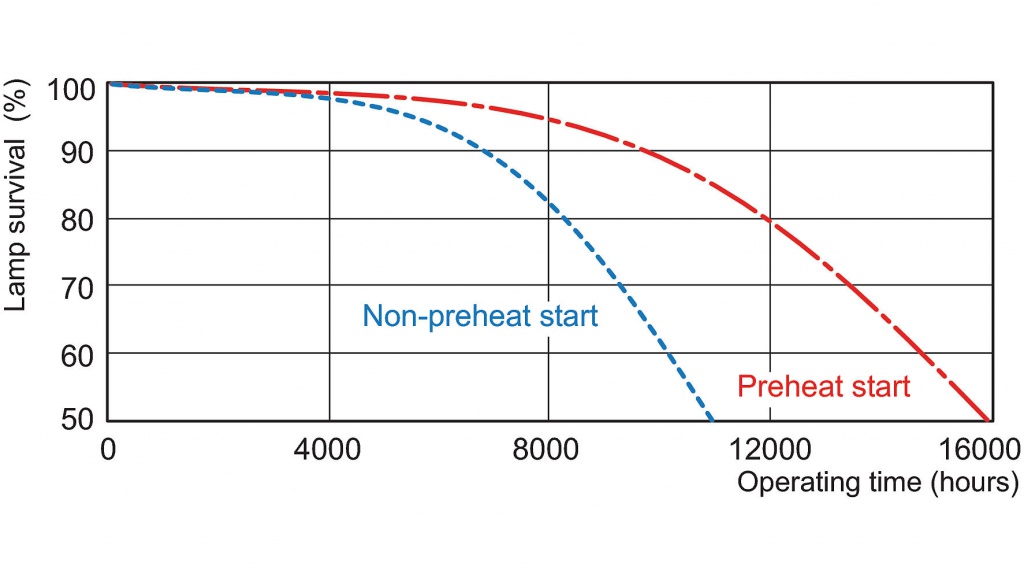

| LSF HF Preheat 2000h Rated,3h | 99 % |
| LSF HF Preheat 4000h Rated,3h | 99 % |
| LSF HF Preheat 12000h Rated,3h | 50 % |
| LSF HF Preheat 6000h Rated,3h | 96 % |
| LSF HF Preheat 8000h Rated,3h | 89 % |
| LSF HF Preheat 16000h Rated,3h | 10 % |
| Luminous Flux EL 25°C, Nominal | 3300 Lm |
| Luminous Flux EL 25°C, Rated | 3300 Lm |

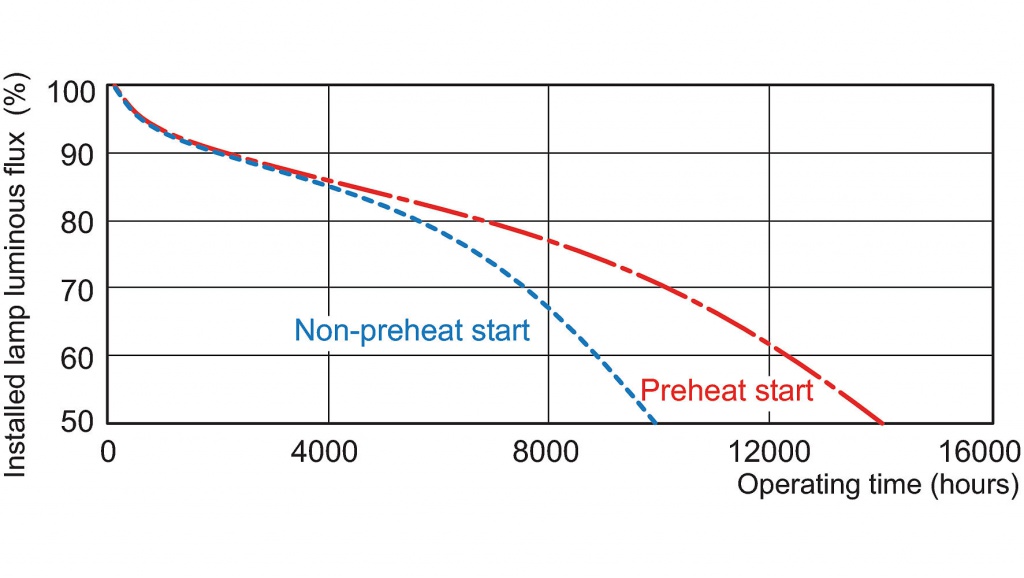

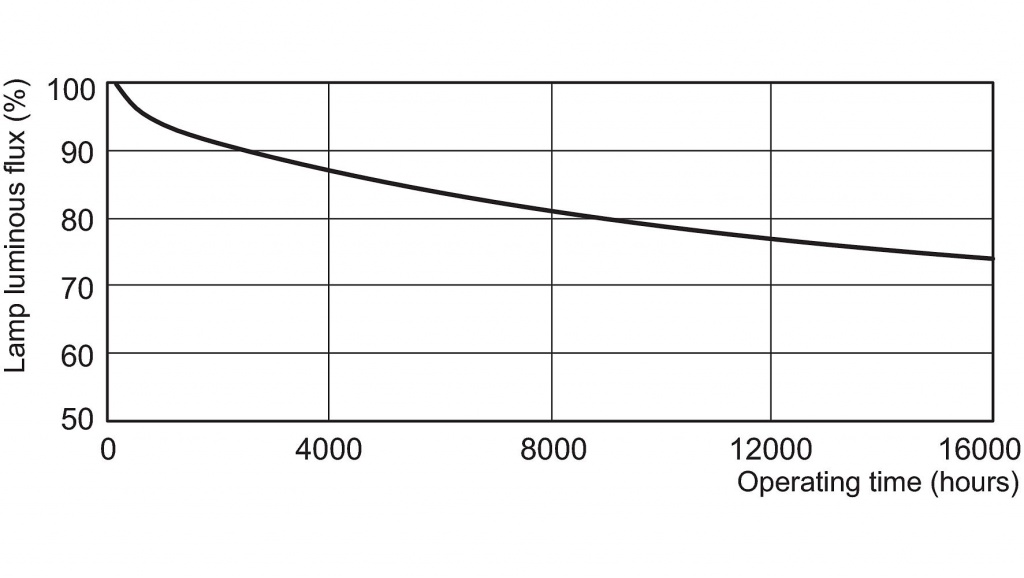

| LLMF HF 2000h Rated | 91 % |
| LLMF HF 4000h Rated | 87 % |
| LLMF HF 12000h Rated | 77 % |
| LLMF HF 6000h Rated | 84 % |
| LLMF HF 8000h Rated | 81 % |
| Lamp Wattage EL 25°C, Rated | 39.9 W |
| Lamp Voltage EL 25°C | 126 V |
| Lamp Wattage EL 25°C, Nominal | 40 W |
| Lamp Current EL 25°C | 0.320 A |
| Lum Efficacy Rated HF 25°C | 83 Lm/W |
| LSF HF Preheat 20000h Rated,3h | 1 % |
| LLMF HF 16000h Rated | 74 % |
| LLMF HF 20000h Rated | 72 % |
| Calibration Current | 0.320 A |
| HF Generator Rated Voltage | 254 V |
| Resistor | 400 ohm |
| Inner Width I | 260 (min), 272 (max) mm |

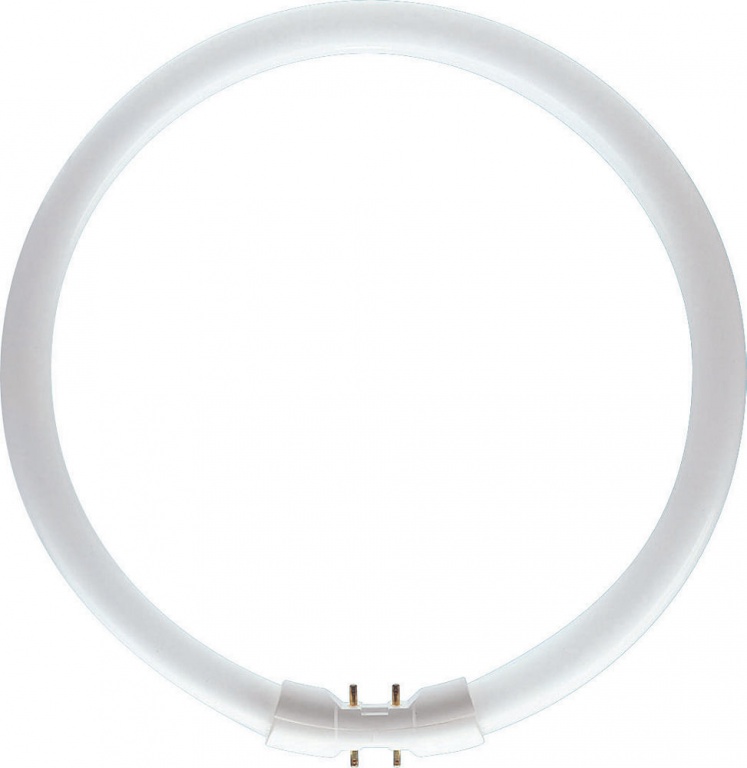

This circular TL5 lamp (tube diameter 16 mm) offers extended design possibilities. The slim tube allows the creation of extremely flat luminaires and enables omni-directional light distribution. It is suitable for a wide range of professional and semi-professional applications, and is ideal for use in shops, offices and public areas with unconventional layouts.
Features
| Perfect circular shape |
| Highly efficient 3-band fluorescent coating |
| Specifically designed for operation with electronic gear |
| Can be ignited from -15 to +50 °C |
| Amalgam technology |
Applications
| Brings the benefits of TL5 lighting to an even wider range of attractive applications |
| Suitable for a wide range of professional and semi-professional applications |
| Ideal for use in shops, offices and public areas with non-traditional lay-outs |
| Amalgam lamps are limited suitable for dimming applications |
