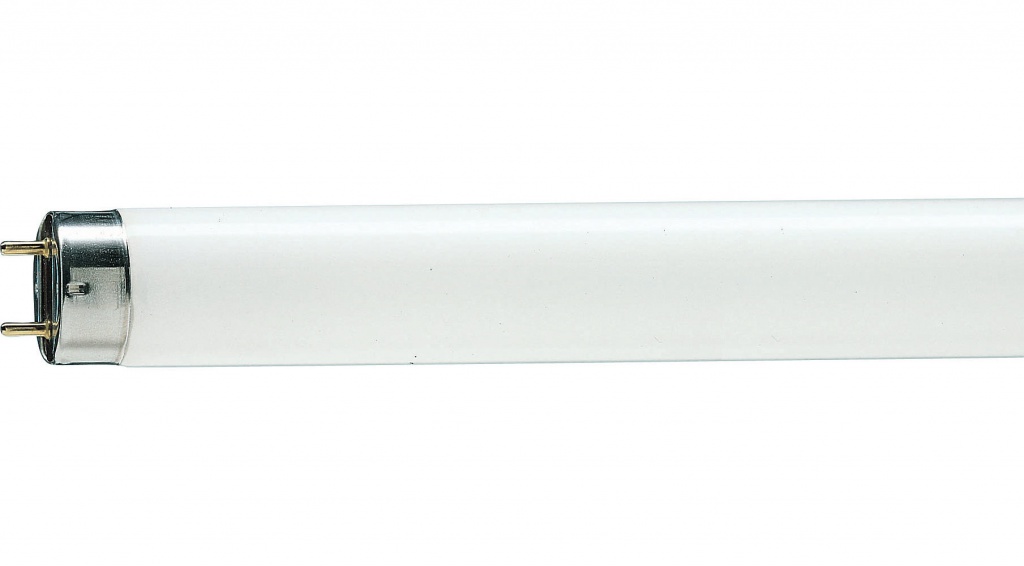

This TL-D lamp has excellent color rendering which makes it very suitable for the graphical and printing industry to check the quality of printed material.
Score
rate product

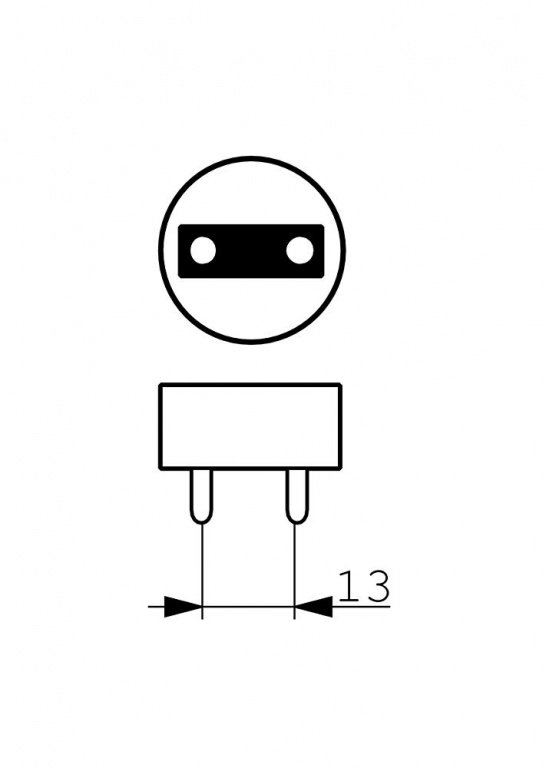

| Cap-Base | G13 [Medium Bi-Pin Fluorescent] |
| Bulb | T8 [26 mm] |
| Color Code | 965 [CCT of 6500K] |
| Color Designation (text) | Cool Daylight |
| Color Temperature | 6500 K |
| Dimmable | Yes |
| Energy Efficiency Label (EEL) | B |
| Energy consumption kWh/1000h | 22 kWh |

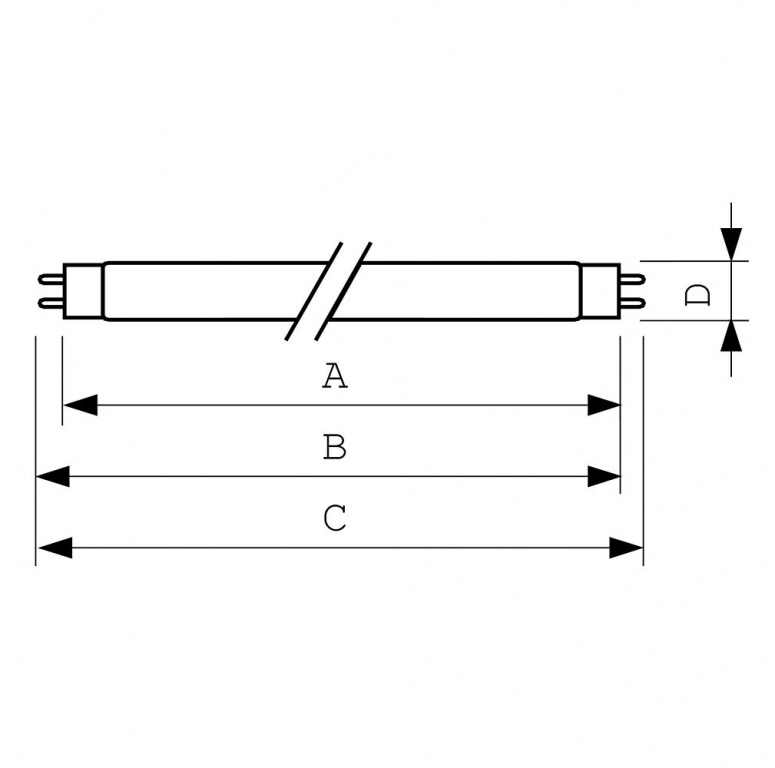

| Diameter D | 28 (max) mm |
| Overall Length C | 604 (max) mm |
| Full product code | 928043796581 |
| Full product name | MASTER TL-D 90 Graphica 18W/965 1SL |
| Order code | 928043796581 |
| Order product name | MASTER TL-D 90 Graphica 18W/965 1SL/10 |
| Packing configuration | 10 |
| Pieces per pack | 1 |
| Bar code on outerbox - EAN3 | 8711500888532 |
| Bar code on pack - EAN1 | 8711500888525 |
| Packs per outerbox | 10 |
| Logistic code(s) - 12NC | 928043796581 |
| Net weight per piece | 49.700 gr |
| Lamp Wattage | 18 W |
| Color Rendering Index | 98 Ra8 |
| ILCOS code | FD-18/65/1A-E-G13 |
| Mercury (Hg) Content | 3.0 mg |
| Insertion Length B | 594.5 (min), 596.9 (max) mm |
| Chromaticity Coordinate X | 309 - |
| Chromaticity Coordinate Y | 323 - |

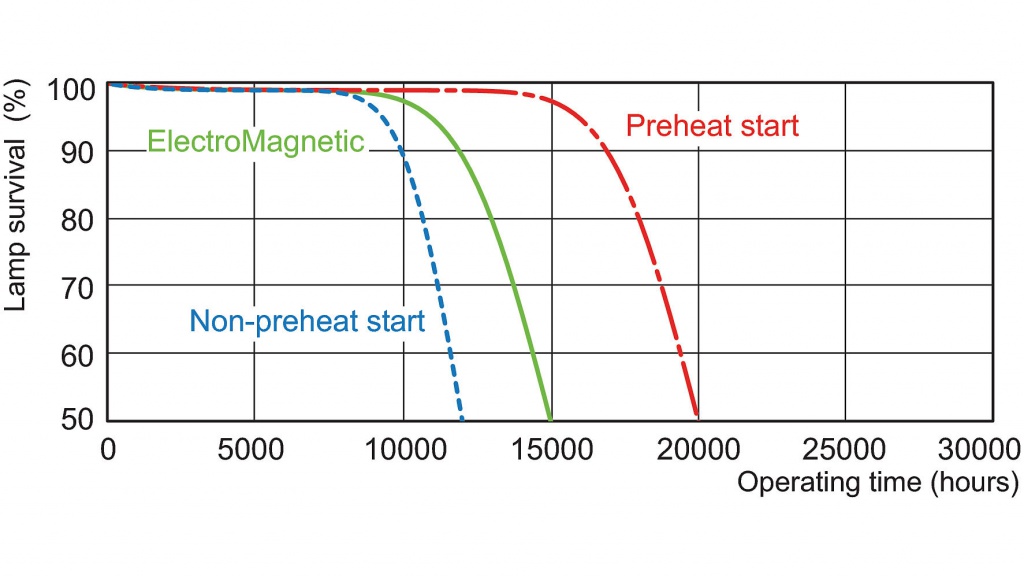

| LSF EM 2000h Rated,3h cycle | 99 % |
| LSF EM 4000h Rated,3h cycle | 99 % |
| LSF EM 6000h Rated,3h cycle | 99 % |
| LSF EM 8000h Rated,3h cycle | 99 % |

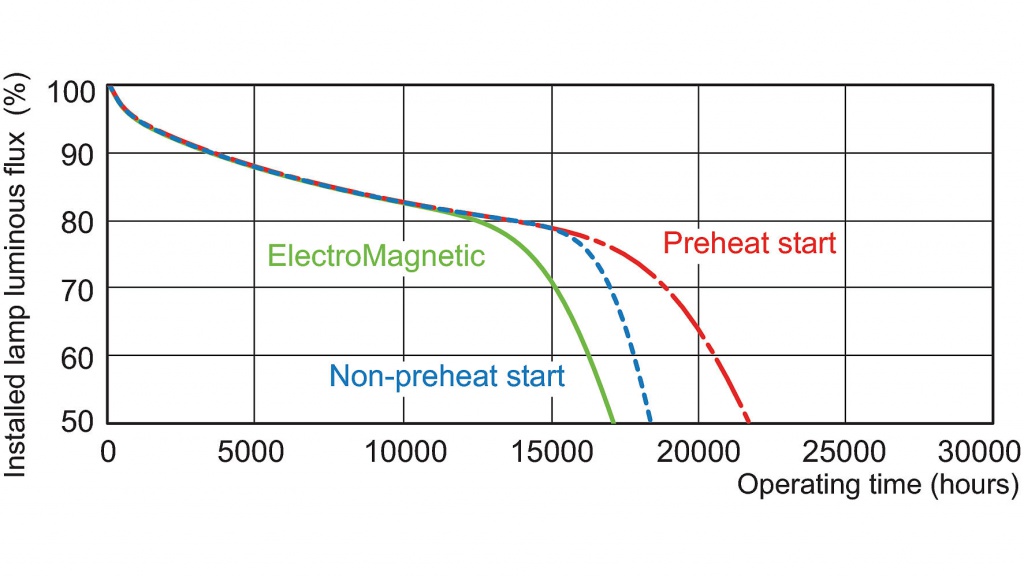

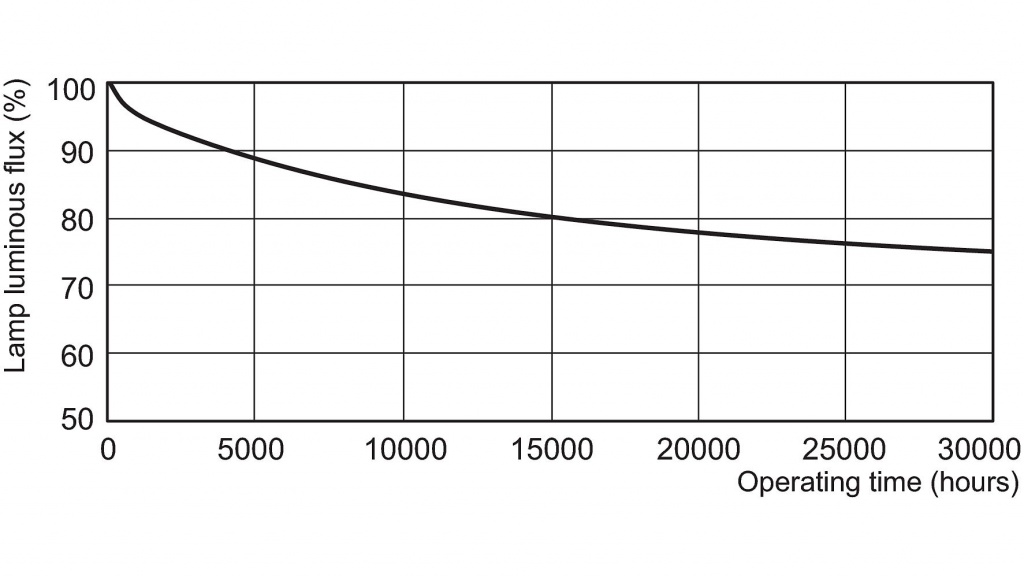

| LLMF EM 2000h Rated | 93 % |
| Lum Efficacy Rated EM 25°C | 51.7 Lm/W |
| Luminous Flux EM 25°C, Nominal | 930 Lm |
| Luminous Flux EM 25°C, Rated | 930 Lm |
| LLMF EM 4000h Rated | 90 % |
| LLMF EM 6000h Rated | 88 % |
| LLMF EM 8000h Rated | 85 % |
| Design Temperature | 25 C |
| Lamp Wattage EM 25°C, Nominal | 18 W |
| Lamp Current EM 25°C | 0.360 A |
| Lamp Voltage EM 25°C | 59 V |
| Lamp Wattage EM 25°C, Rated | 18.0 W |
| Base Face to Base Face A | 589.8 (max) mm |
| LSF EM 12000h Rated,3h cycle | 89 % |
| LSF EM 16000h Rated,3h cycle | 33 % |
| LLMF EM 12000h Rated | 82 % |
| LLMF EM 16000h Rated | 80 % |
| LLMF EM 20000h Rated | 78 % |
| LSF EM 20000h Rated,3h cycle | 2 % |
| Luminance Average EM | 0.80 cd/cm2 |
This TL-D lamp has excellent color rendering which makes it very suitable for the graphical and printing industry to check the quality of printed material.
Features
| High-quality fluorescent coating for excellent color rendering and very accurate color point |
| Use of mix of three-band phosphors and halophosphates for high efficacy |
| Retrofit in current luminaires for standard TL-D lamps |
Applications
| Used in applications where excellent color rendering is crucial, such as the graphical industry, printing industry, photo shops, hospitals, etc. |
