| Full product code | 910504431118 |
| Full product name | TBS260 2xTL5-28W/830 HFS D6 PI |
| Order code | 910504431118 |
| Order product name | TBS260 2xTL5-28W/830 HFS D6 PI |
| Pieces per pack | 0 |
| Bar code on outerbox - EAN3 | 8711559699905 |
| Packs per outerbox | 1 |
| Logistic code(s) - 12NC | 910504431118 |
| Net weight per piece | 3.250 kg |
| Product family code | TBS260 [TBS260] |
| Number of light sources | 2 [2 pcs] |
| Kombipack | K [Lamp(s) included] |
| Lamp family code | TL5 [TL5] |
| Lamp power | 28 W [28 W] |
| Light source color | 830 [830 warm white] |
| Gear | HFS [HF Standard] |

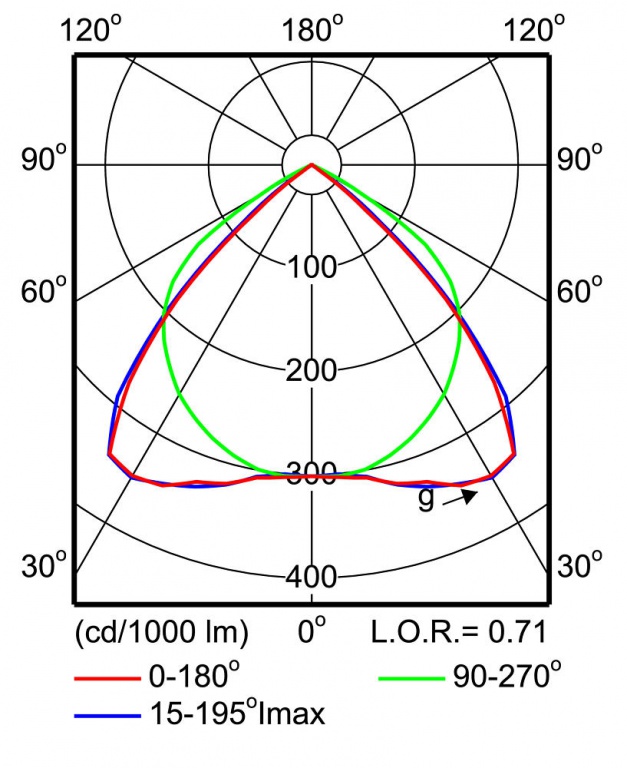

| Optic type | D6 [Semi-high-gloss optic double parabolic] |
| Optical cover/lens type | No |
| Cable | No |
| Emergency lighting | No |
| Ingress protection code | IP20 [Finger-protected] |
| Input voltage | 220-240 V [220 to 240 V] |
| Protection class IEC | CLI [Safety class I] |
| Mech. impact protection code | IK02 [0.2 J standard] |
| CE mark | CE [CE mark] |
| ENEC mark | ENEC [ENEC mark] |
| Glow-wire test | 960/5 [Temperature 960 °C, duration 5 s] |
| Connection | PI [Push-in connector 3-pole] |
| Embedded control | No |
| Mechanical accessories | No |
| Separate switching | No |
| Safety device | No |

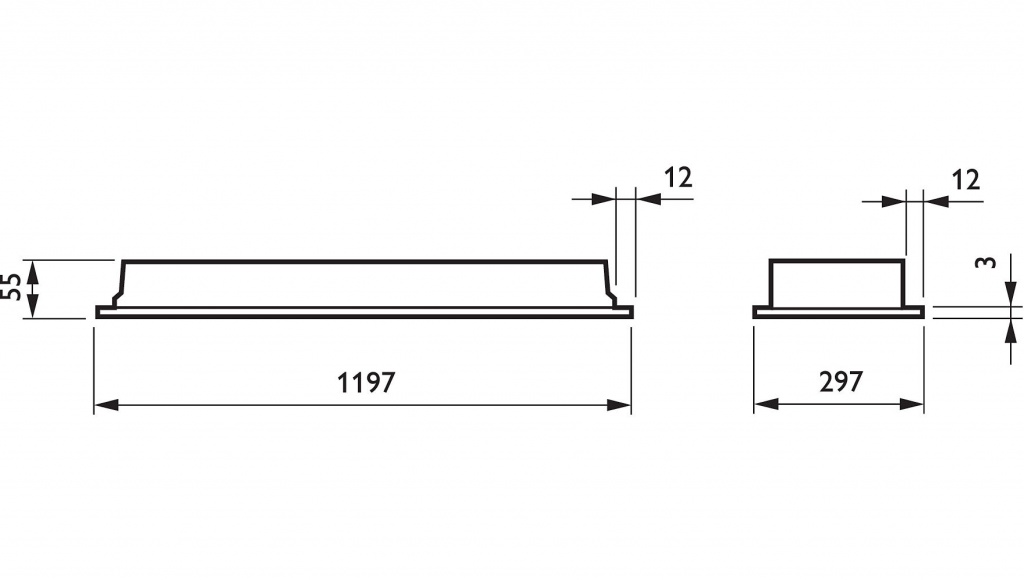

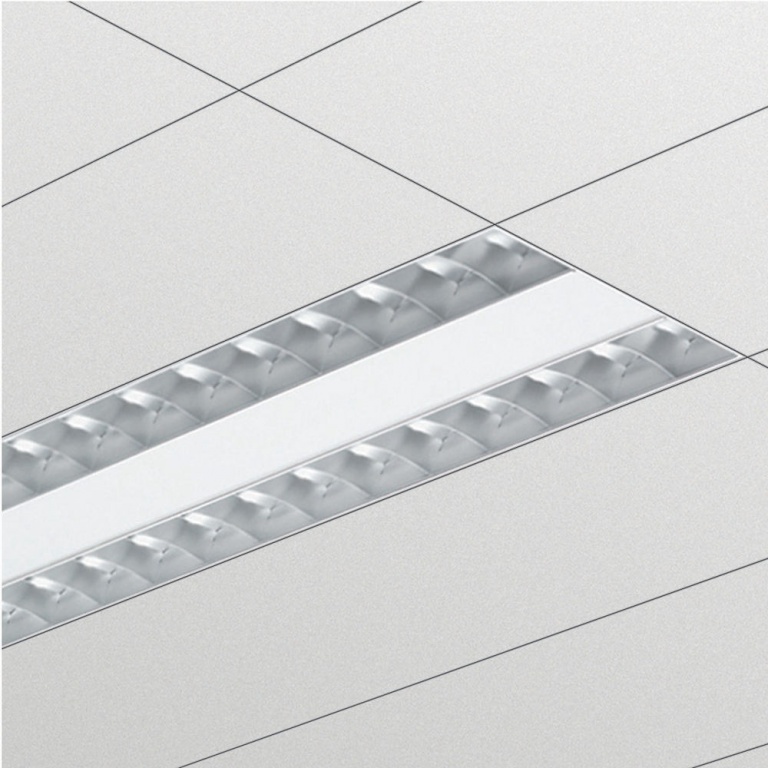

EFix recessed TBS260 is a modular recessed luminaire for TL5 fluorescent lamps. Measuring only 55 mm in overall height and featuring a very flat rim, it fits in 600 mm grids in exposed, concealed and plaster ceilings. EFix recessed TBS260 offers a choice of mini-optics and has been optimized for general lighting applications and offers standard slots for ventilation. The optional Luxsense control delivers automatic energy savings. By reacting to the level of daylight the artificial light will be adjusted, enabling significant savings on energy costs. The luminaire comes with an external connection system enables the mains connection to be made without opening the luminaire, and lamps included, making it extremely easy to mount in position. The EFix recessed TBS260 range comprises square 3- and 4-lamp and rectangular 2-lamp versions. EFix surface-mounted TCS260 and EFix suspended TPS260 complete Philips’ range of luminaires for general lighting applications in offices and shops.
Features
| Measures only 55 mm in overall height; very flat rim |
| TL5 lamps, electronic ballast and optional Luxsense control system |
| Choice of mini-optics |
| External connection system |
| Square 3- and 4-lamp and rectangular 2-lamp versions |
Applications
| Offices |
| Education |
| Retail |
