Product code: 56592
Price € 128,01 incl. VAT
€ 128,01 netto
pc(s)
pc(s)
  • Operating frequency 0.165 kHz

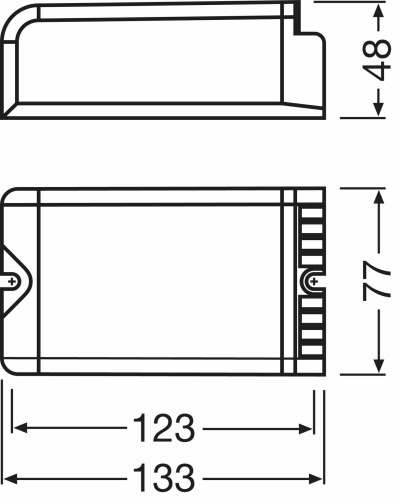

  • Length 133.0 mm
  • ECG efficiency 91 %
  • Inrush current 45 A
  • Max. no. of ECGs on circuit breaker 10 A
  • Max. no. of ECGs on circuit breaker 16 A 13
  • Width 77.0 mm
  • Height 48.0 mm
  • Mounting hole spacing, length 123.0 mm
  • Cable cross-section, input side 0.5…2.5 mm²
  • Product weight 730.00 g
  • Cable cross-section, output side 0.5…2.5 mm²
  • ▼ see full specification ▼

Select your product from the 4

 PTo 100/220...240 3DIM
Product code: 56585 Operating frequency: 0.165 kHz Length: 158.0 mm ECG efficiency: 91 % Inrush current: 60 A  Max. no. of ECGs on circuit breaker 10 A: Max. no. of ECGs on circuit breaker 16 A: Width: 94.0 mm Height: 42.5 mm Mounting hole spacing, length: 148.0 mm Cable cross-section, input side: 0.5…2.5 mm² see more »
Product weight: 900.00 g Cable cross-section, output side: 0.5…2.5 mm² Ambient temperature range: -25…+55 °C Maximum temperature at tc test point: 75 °C Overheating protection: Power reduction and switch off at T > 75 °C at the tc point Approval marks – approval: ENEC 10 / VDE / VDE-EMC / GOST / C-Tick Standards: Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 62386-101/Acc. to EN 62386-102/Acc. to EN 62386-103 Dimming range: 60…100 % Lamp wattage: 97 W Line current: 0.48 A  System wattage: 106.00 W Max. no. of ECGs on 16A MCB with EBN-OS: 17  Max. capacitance of wire ECG/lamp: 120 pF « hide more
€ 111,59 € 111,59 ex. VAT
pc(s)
pc(s)
 PTo 150/220...240 3DIM
Product code: 56586 Operating frequency: 0.165 kHz Length: 158.0 mm ECG efficiency: 91 % Inrush current: 70 A  Max. no. of ECGs on circuit breaker 10 A: Max. no. of ECGs on circuit breaker 16 A: Width: 94.0 mm Height: 42.5 mm Mounting hole spacing, length: 148.0 mm Cable cross-section, input side: 0.5…2.5 mm² see more »
Product weight: 900.00 g Cable cross-section, output side: 0.5…2.5 mm² Ambient temperature range: -25…+45 °C Maximum temperature at tc test point: 75 °C Overheating protection: Power reduction and switch off at T > 85 °C at the tc point Approval marks – approval: ENEC 10 / VDE / VDE-EMC / GOST / C-Tick Standards: Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 62386-101/Acc. to EN 62386-102/Acc. to EN 62386-103 Dimming range: 60…100 % Lamp wattage: 147 W Line current: 0.71 A  System wattage: 160.00 W Max. no. of ECGs on 16A MCB with EBN-OS: 17  Max. capacitance of wire ECG/lamp: 120 pF « hide more
€ 111,59 € 111,59 ex. VAT
pc(s)
pc(s)
 PTo 70/220...240 3DIM
PTo 70/220...240 3DIM (currently dislayed)
Product code: 56592 Operating frequency: 0.165 kHz Length: 133.0 mm ECG efficiency: 91 %  Inrush current: 45 A  Max. no. of ECGs on circuit breaker 10 A: Max. no. of ECGs on circuit breaker 16 A: 13  Width: 77.0 mm Height: 48.0 mm Mounting hole spacing, length: 123.0 mm Cable cross-section, input side: 0.5…2.5 mm² see more »
Product weight: 730.00 g Cable cross-section, output side: 0.5…2.5 mm² Ambient temperature range: -25…+55 °C Maximum temperature at tc test point: 75 °C Overheating protection: Power reduction and switch off at T > 75 °C at the tc point Approval marks – approval: ENEC 10 / VDE / VDE-EMC / GOST / C-Tick Standards: Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 62386-101/Acc. to EN 62386-102/Acc. to EN 62386-103 Dimming range: 60…100 % Lamp wattage: 73 W Line current: 0.35 A  System wattage: 80.00 W Max. no. of ECGs on 16A MCB with EBN-OS: 32  Max. capacitance of wire ECG/lamp: 120 pF « hide more
€ 128,01 € 128,01 ex. VAT
pc(s)
pc(s)
 PTo 250/220...240 3DIM
Product code: 56588 Operating frequency: 0.200…0.240 kHz Length: 170.0 mm New article: NEW ECG efficiency: 93 % Inrush current: 4 A  Max. no. of ECGs on circuit breaker 10 A: Max. no. of ECGs on circuit breaker 16 A: 11  Width: 90.0 mm Height: 60.0 mm Mounting hole spacing, length: 160.0 mm see more »
Cable cross-section, input side: 1.0…2.5 mm² Product weight: 1375.00 g Cable cross-section, output side: 1.0…2.5 mm² Ambient temperature range: -25…+55 °C Maximum temperature at tc test point: 85 °C Overheating protection: Power reduction and switch off at T > 85 °C at the tc point Approval marks – approval: ENEC 10 / VDE / VDE-EMC / GOST Standards: Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 62386-101/Acc. to EN 62386-102/Acc. to EN 62386-103 Dimming range: 60…100 % Lamp wattage: 250 W Line current: 1.17 A  System wattage: 270.00 W Max. capacitance of wire ECG/lamp: 200 pF « hide more
€ 139,12 € 139,12 ex. VAT
pc(s)
pc(s)
Operating frequency 0.165 kHz
Length 133.0 mm
ECG efficiency 91 %
Inrush current 45 A
Max. no. of ECGs on circuit breaker 10 A
Max. no. of ECGs on circuit breaker 16 A 13
Width 77.0 mm
Height 48.0 mm
Mounting hole spacing, length 123.0 mm
Cable cross-section, input side 0.5…2.5 mm²
Product weight 730.00 g
Cable cross-section, output side 0.5…2.5 mm²
Ambient temperature range -25…+55 °C
Maximum temperature at tc test point 75 °C
Overheating protection Power reduction and switch off at T > 75 °C at the tc point
Approval marks – approval ENEC 10 / VDE / VDE-EMC / GOST / C-Tick
Standards Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 62386-101/Acc. to EN 62386-102/Acc. to EN 62386-103
Dimming range 60…100 %
Lamp wattage 73 W
Line current 0.35 A
System wattage 80.00 W
Max. no. of ECGs on 16A MCB with EBN-OS 32
Max. capacitance of wire ECG/lamp 120 pF

Electrical data

Power factor λ 0.95
Input voltage AC 220…240 V
Mains frequency 50…60 Hz
Surge capability (L-N) 3 kV
Surge capability (L/N-Ground) 4 kV
U-OUT (working voltage) 250 V
Input voltage range AC 198…264 V
Ignition voltage 4.5 kVp
Max. working voltage between LH and LL 250 V
Protective conductor current 0.1 mA
Max. working voltage betw. LL/LH & earth 250 V

Dimensions & weight

Wire preparation length, input side 10…11 mm
Wire preparation length, output side 10…11 mm

Lifespan

ECG lifetime 60000 h

Additional product data

Encapsulated Yes
Design / version ECG outdoor
Required IP rating of luminaire ≥ 54

Capabilities

Dimmable Yes
Suitable for fixtures with prot. class I / II
Max. cable length to lamp/LED module 1.5 m

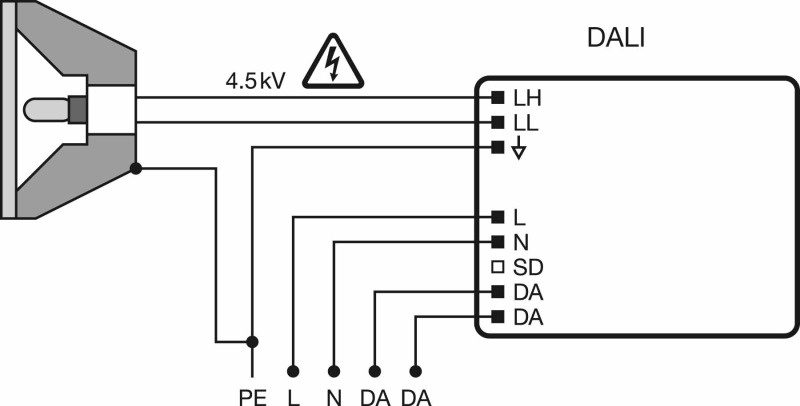

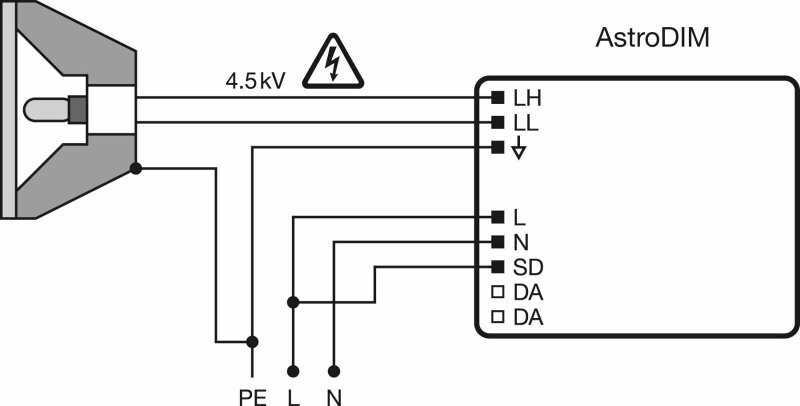

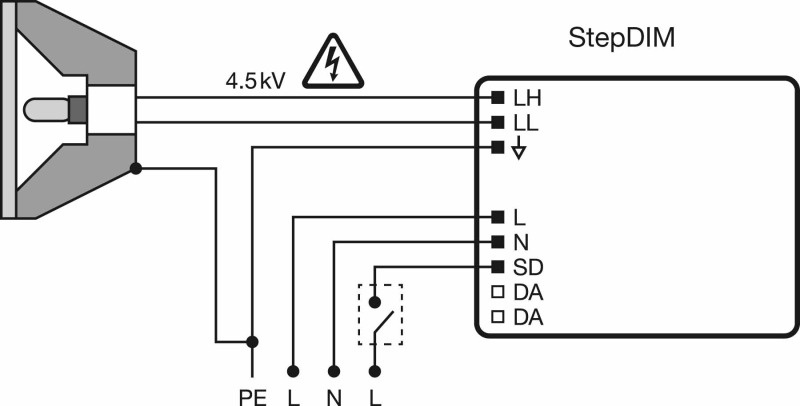

Dimming interface DALI / StepDIM / AstroDIM
ECG reset time > 0.5 s
Restriction on ignition time 20 min
Burn-in time prior to dimming operation 10 min
Lightning stroke protection With connected equipotentiality-terminal 10 surges with 10 kV acc. to IEC 61000-4-5

Certificates & standards

Type of protection IP20
EEI – Energy Label A2

Colors & materials

Casing material Plastic

Product benefits

  • Energy savings up to 30 % (compared to CCG operation) thanks to 3DIM (except PTo 35)
  • High surge protection: up to 3 kV (L-N) / 4 kV (L/N-PE)
  • Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)
  • Excellent thermal behavior for very high limit temperatures tc and ta

Areas of application

  • Suitable for luminaires of protection classes I and II
  • Suitable for outdoor applications in fixtures with IP > 54

Product features

  • 3DIM functionality (StepDIM/AstroDIM/DALI)
  • Energy Efficiency Index EEI: A2
  • Lightning protection: up to 10 kV
  • Line voltage: 198…264 V
  • Line frequency: 50…60 Hz
  • Line harmonics according to EN 61000-3-2
  • Immunity according to EN 61547
  • RI suppression: to EN 55015 (A1: 2007) up to 300 MHz
  • Safety: to EN 61347-2-12
  • Luminous flux factor 1 compared with CCG operation
  • Not suitable for DC operation

Thermal characteristics
Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point tc of the ECG does not exceed the maximum value.
Attention!
For safety reasons disconnect the device before replacing the lamp!
