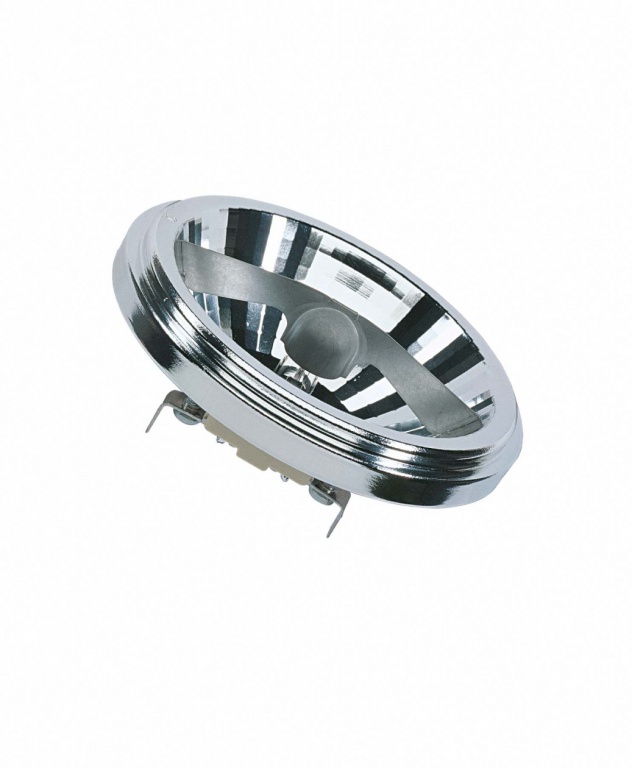

HALOSPOT 111 35 W 6 V 4° G53 Halogen Lamps G53 / AR111

Electrico24 code: 56701 | Osram code: 4050300011141

Unavailable

Nominal voltage 12 V
Nominal wattage 35.00 W
Color temperature 3000 K
Power factor λ 1.00
Light color as per EN 12464-1 Warm White
Rated useful luminous flux 90° 320 lm
Beam angle 4 °
Starting time 0.0 s
Warm-up time (60 %) 0.00 s
Overall length 60.0 mm
Diameter 111.0 mm
Length 67.0 mm
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Description / FAQ Warranty

Nominal voltage	6 V
Nominal wattage	35.00 W
Color temperature	3000 K
Power factor λ	1.00
Light color as per EN 12464-1	Warm White
Rated useful luminous flux 90°	320 lm
Beam angle	4 °
Starting time	0.0 s
Warm-up time (60 %)	0.00 s
Overall length	60.0 mm
Diameter	111.0 mm
Length	67.0 mm
Outer bulb	AR111
Nominal lamp life time	3000 h
Rated lamp life time	3000 h
Base (standard designation)	G53
Mercury-free	Yes
Number of switching cycles	75000
Dimmable	Yes
Energy efficiency class	C
Order reference	41830 SSP 35W 6
Color rendering index Ra	100
Luminous intensity	30000 cd
Nominal useful luminous flux 90°	320 lm
Lumen main.fact.at end of nom.life time	0.75
Maximum diameter	111.0 mm
Lamp mercury content	0.0 mg
Energy consumption	38 kWh/1000h
ILCOS	HMGS//UB-35-6-G53-111/4
Burning position	Any
Product remark	If connectors are used, an additional holder is required at the rim of the reflector/May produce noise in combination with some dimmers. Recommended solution: use OSRAM HTi DALI 150/230-240 DIM with OSRAM DALI MCU
Rated wattage	35.00 W
Electrical data
Nominal voltage	12 V
Power factor λ	1.00
Photometrical data
Light color as per EN 12464-1	Warm White
Color rendering index Ra	100
Light technical data
Starting time	0.0 s
Warm-up time (60 %)	0.00 s

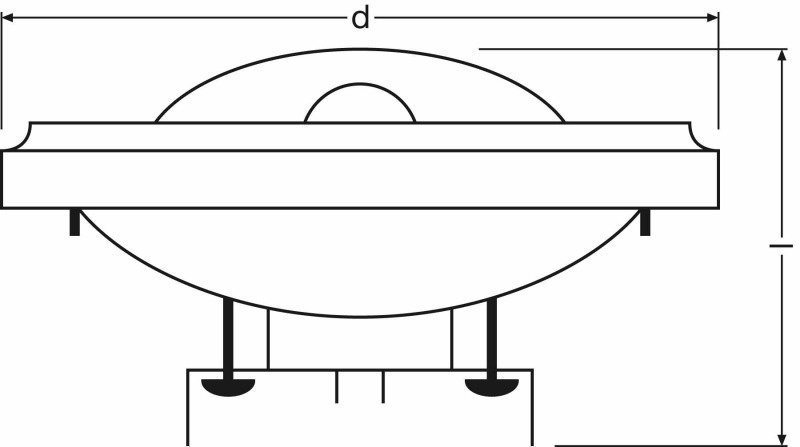

Dimensions & weight
Diameter	111.0 mm
Length	67.0 mm
Outer bulb	AR111
Maximum diameter	111.0 mm
Lifespan
Nominal lamp life time	3000 h
Rated lamp life time	3000 h
Number of switching cycles	75000
Lumen main.fact.at end of nom.life time	0.75
Additional product data
Base (standard designation)	G53
Mercury-free	Yes
Lamp mercury content	0.0 mg
Product remark	If connectors are used, an additional holder is required at the rim of the reflector/May produce noise in combination with some dimmers. Recommended solution: use OSRAM HTi DALI 150/230-240 DIM with OSRAM DALI MCU
Capabilities
Dimmable	Yes
Burning position	Any

Product benefits

Brilliant accent light
Cap for reduced glare and ease of handling
Burner with axial filament for optimum distribution of light
Approved for use in open luminaires (to IEC 60598-1)
UV filter
Drastically reduced thermal load in fixture thanks to aluminum-coated reflector
Contains no mercury

Areas of application

General illumination
Shops
Restaurants, hotels and similar prestigious applications
Offices, public buildings
Entrance lighting

Product features

Average life: 3,000 h
100 % dimmable
Color rendering index Ra: 100
Diameter: 111 mm

HALOSPOT 111 35 W 6 V 4° G53
