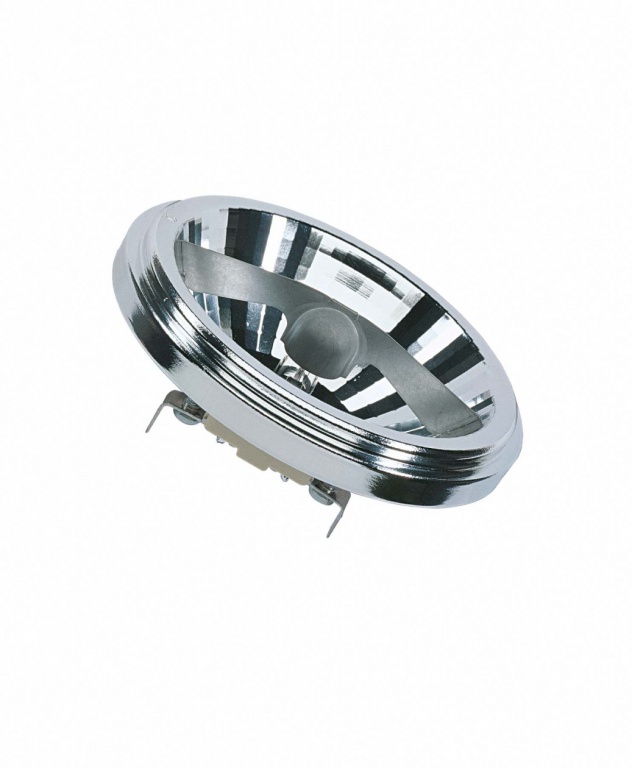

HALOSPOT 111 100 W 12 V 24° G53 Halogen Lamps G53 / AR111

Electrico24 code: 55730 | Osram code: 4050300358628

Unavailable

Construction wattage [PICOS] 100.00 W
Nominal wattage 100.00 W
Color temperature 3000 K
Rated useful luminous flux 90° 1200 lm
Beam angle 24 °
Overall length 61.0 mm
Energy efficiency class B
Order reference 41850 FL ND 100
Luminous intensity 8500 cd
Nominal useful luminous flux 90° 1200 lm
Energy consumption 106 kWh/1000h
ILCOS HMGS//UB-100-12-G53-111/24
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Construction wattage [PICOS]	100.00 W
Nominal wattage	100.00 W
Color temperature	3000 K
Rated useful luminous flux 90°	1200 lm
Beam angle	24 °
Overall length	61.0 mm
Energy efficiency class	B
Order reference	41850 FL ND 100
Luminous intensity	8500 cd
Nominal useful luminous flux 90°	1200 lm
Energy consumption	106 kWh/1000h
ILCOS	HMGS//UB-100-12-G53-111/24
Electrical data
Nominal voltage	12 V
Power factor λ	1.00
Photometrical data
Light color as per EN 12464-1	Warm White
Color rendering index Ra	100
Light technical data
Starting time	0.0 s
Warm-up time (60 %)	0.00 s
Dimensions & weight
Diameter	111.0 mm
Length	67.0 mm
Outer bulb	AR111
Maximum diameter	111.0 mm
Lifespan
Nominal lamp life time	3000 h
Rated lamp life time	3000 h
Number of switching cycles	75000
Lumen main.fact.at end of nom.life time	0.75
Additional product data
Base (standard designation)	G53
Mercury-free	Yes
Lamp mercury content	0.0 mg
Product remark	If connectors are used, an additional holder is required at the rim of the reflector/May produce noise in combination with some dimmers. Recommended solution: use OSRAM HTi DALI 150/230-240 DIM with OSRAM DALI MCU
Capabilities
Dimmable	Yes
Burning position	Any

Product benefits

Brilliant accent light
Cap for reduced glare and ease of handling
Burner with axial filament for optimum distribution of light
Approved for use in open luminaires (to IEC 60598-1)
UV filter
Drastically reduced thermal load in fixture thanks to aluminum-coated reflector
Contains no mercury

Areas of application

General illumination
Shops
Restaurants, hotels and similar prestigious applications
Offices, public buildings
Entrance lighting

Product features

Average life: 3,000 h
100 % dimmable
Color rendering index Ra: 100
Diameter: 111 mm

HALOSPOT 111 100 W 12 V 24° G53

Rated 5.0/5 based on 1 customer reviews

https://www.electrico24.eu/uploads/product_images/p-55730-108348.jpg

Halogen Lamps / Halogen Lamps G53 / AR111

Osram https://www.electrico24.eu/uploads/producer_logos/d83bdb510944b8ad8743f3d191f9d801.png

HALOSPOT 111 100 W 12 V 24° G53 55730 55730 55730

41.34 PLN available
